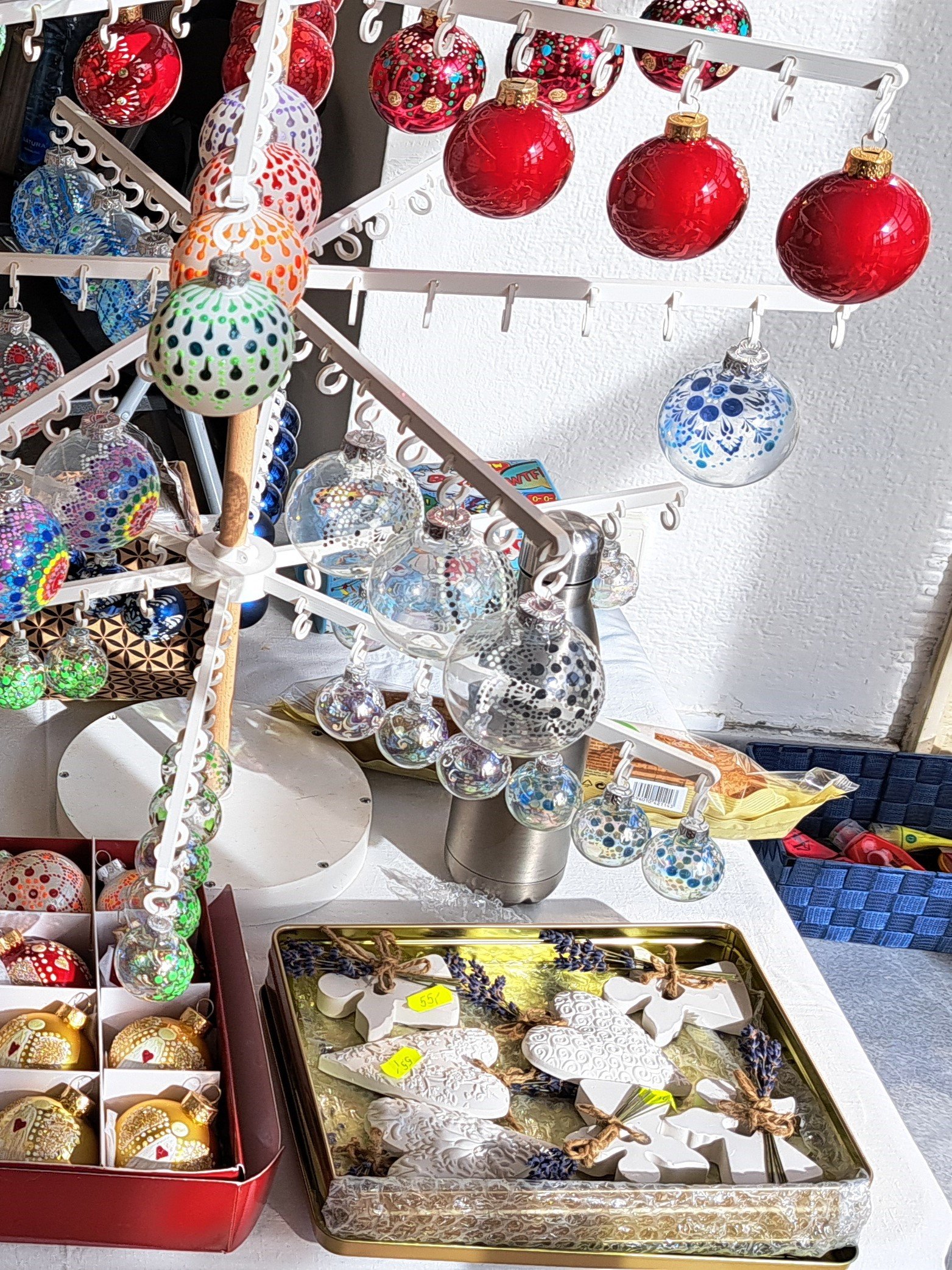

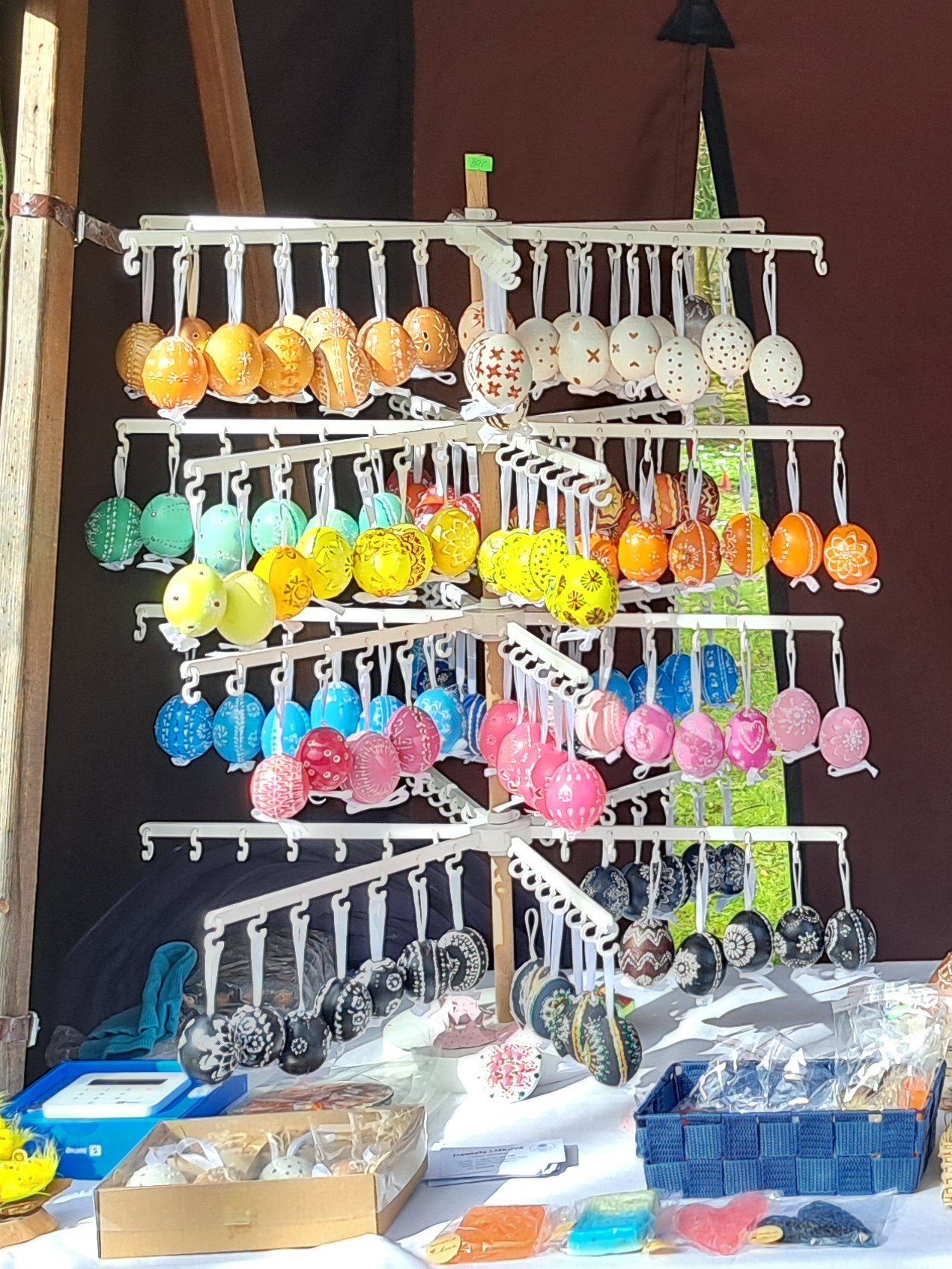

The inspiration for this model was the need to present Christmas flasks and Easter eggs at markets and fairs. The rotating stand allows you to hang up to 42 objects on one six-sided center with six arms. Or up to 28 objects on a four-sided center. Larger Christmas bulbs are hung according to the diameter with a distance of one or two hooks.

Previous Next

The stand is self-supporting, for greater stability the stand is filled with sand, for example from pool filtration. Only the arms with hooks are removed before transporting the stand. The hook arm can carry lighter objects, heavier objects could break the arm.

Progress

With this model, it was difficult to match the size of the center and arm so that the arm could be inserted into the center. And also to find a suitable hook size so that it can be inserted or pulled out without falling off the shoulder.

It was interesting to look for suitable dimensions of the arm, the part that slides into the center is the most stressed. And the narrowing around the holes in the arm reduces the durability of the structure.

Related

This model is not yet related to any other project, software or hardware.

Print

If the individual parts are properly rotated, the print is fine and the supports are minimal.

Construction

The model is made of several parts and its final form is not difficult to assemble. Anyone can do it with a little skill.

Insert a wooden log into the center of the stand and secure it with a small screw on the side. Then pour sand into the stand almost to the edge. Finally, we slide the cover of the stand and screw in the screws along the edge.

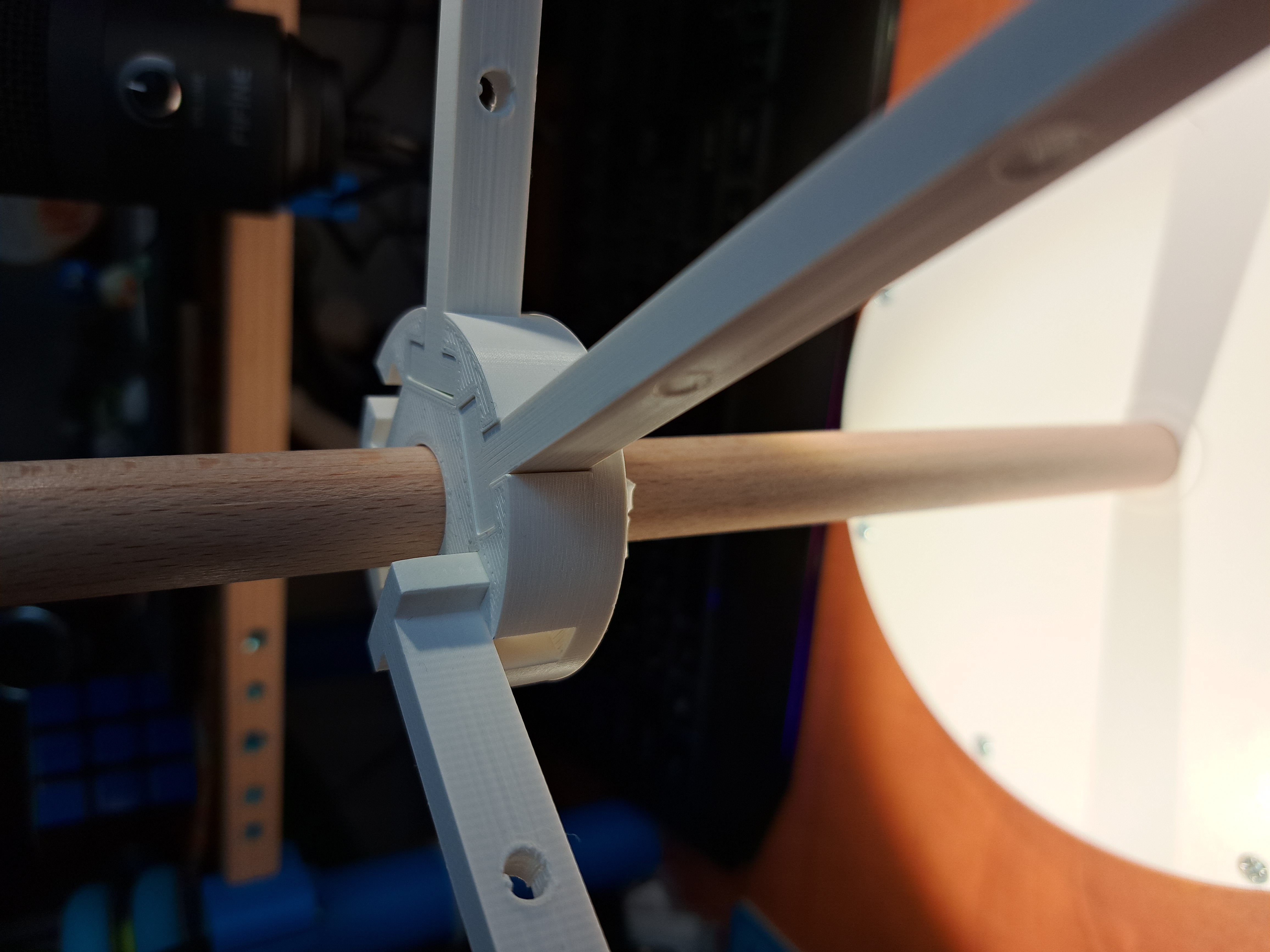

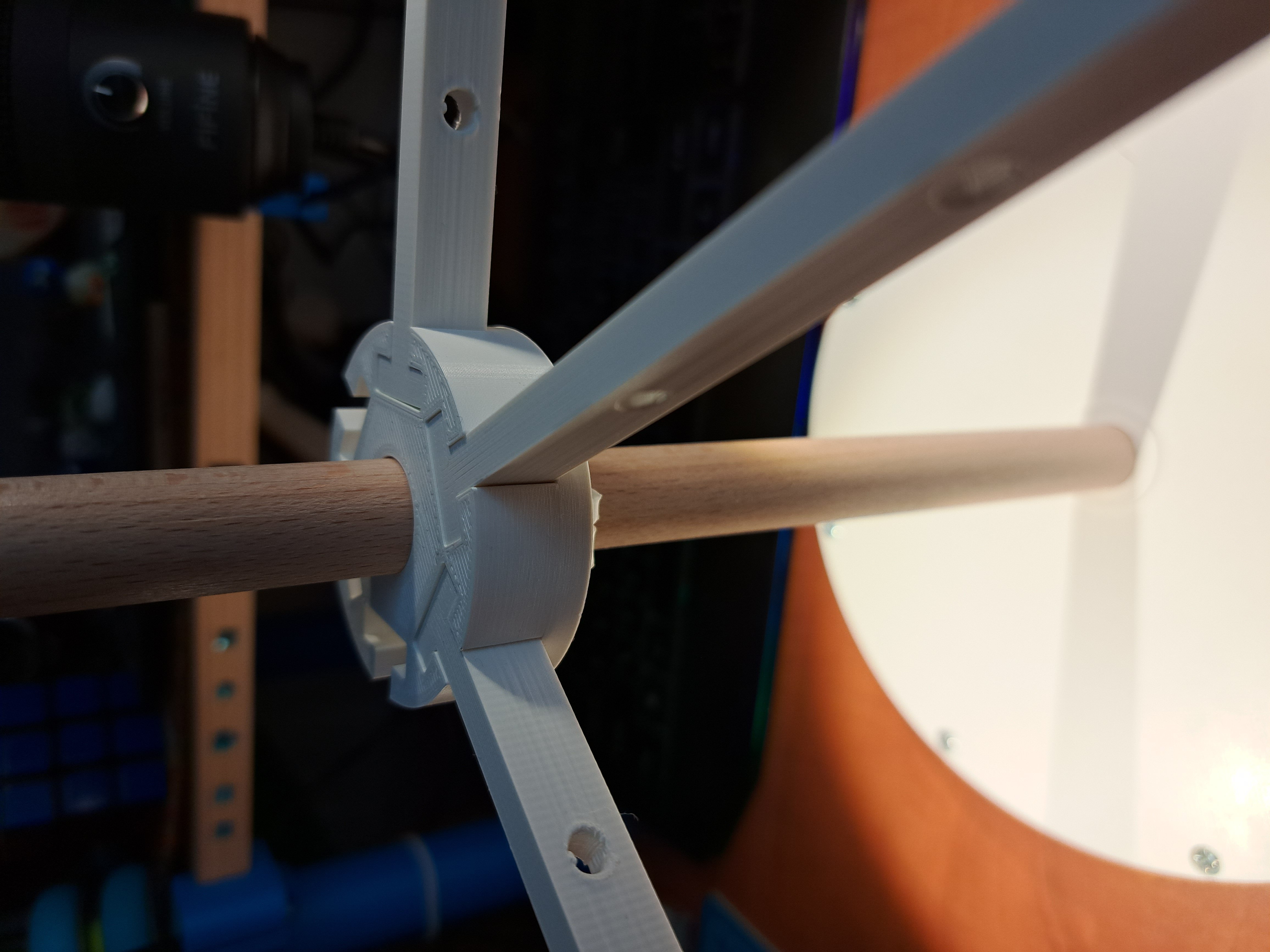

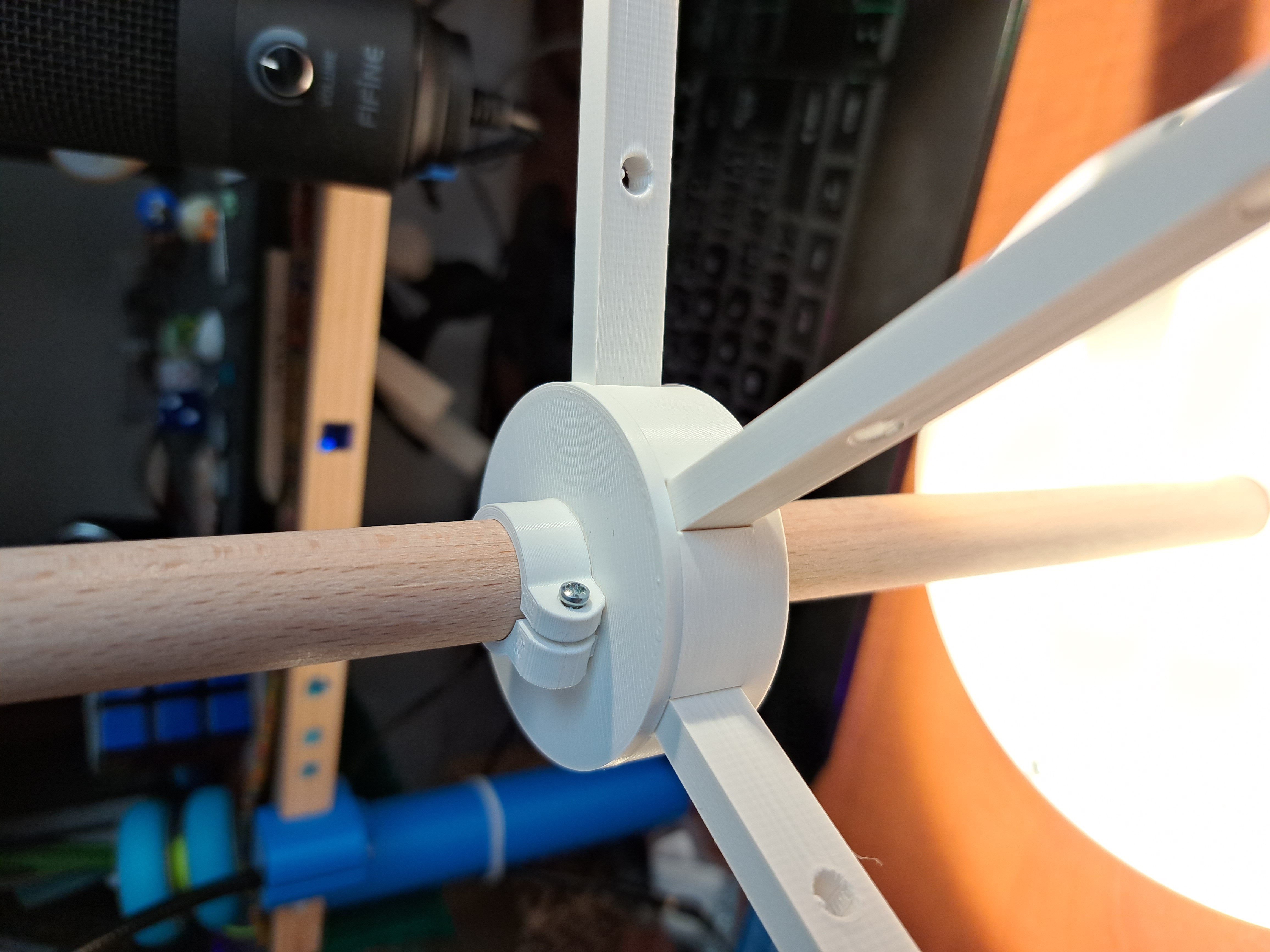

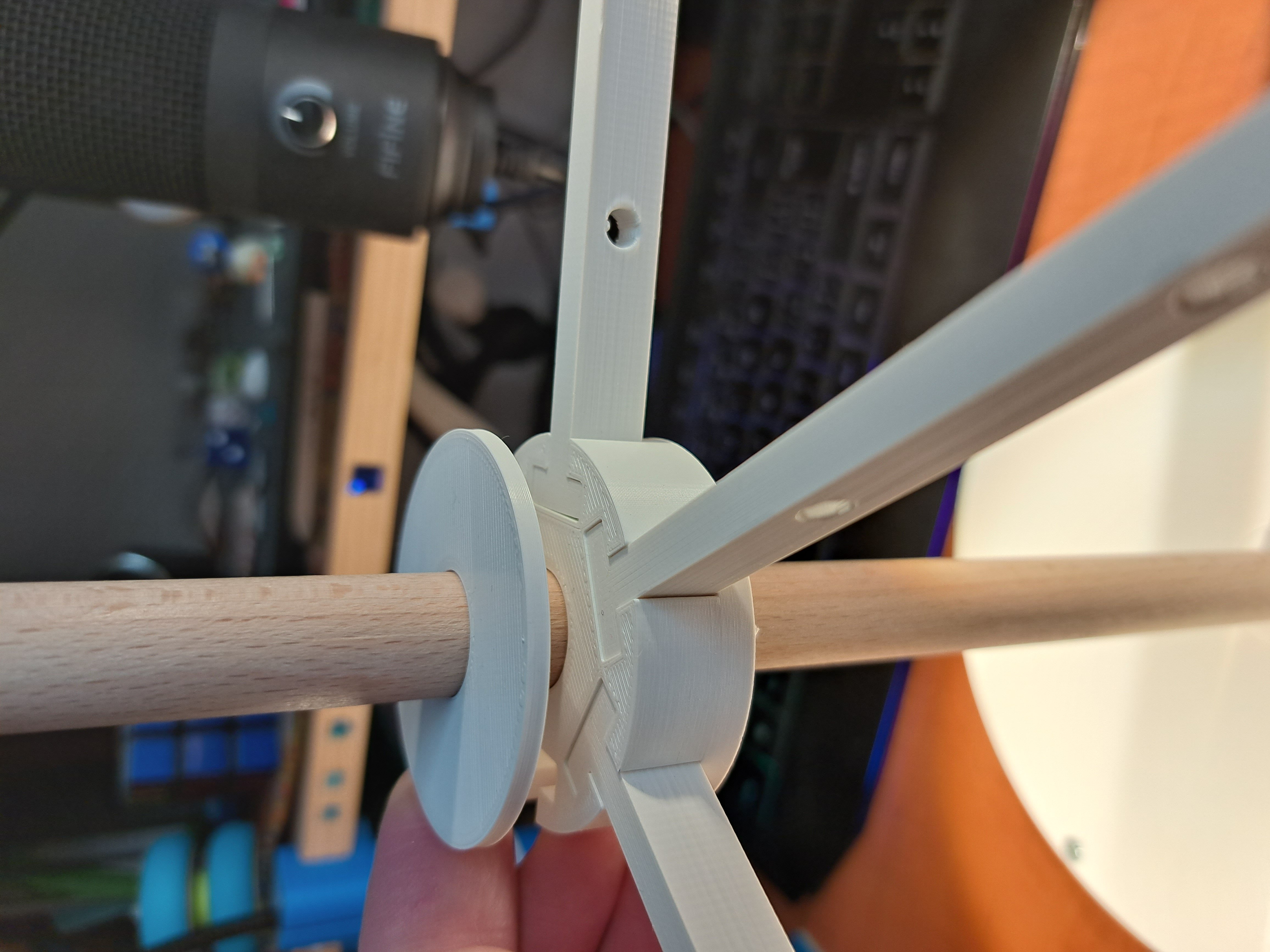

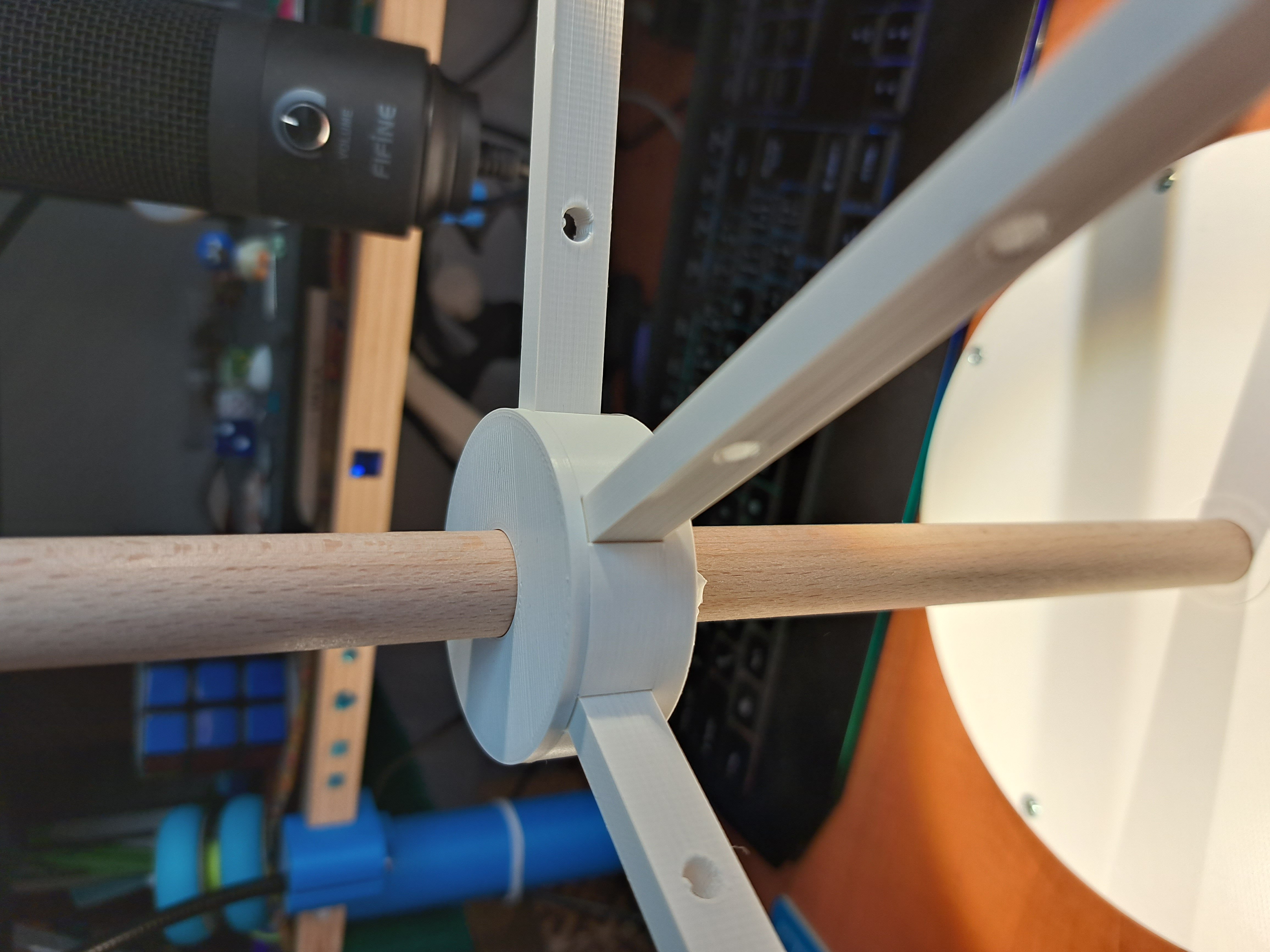

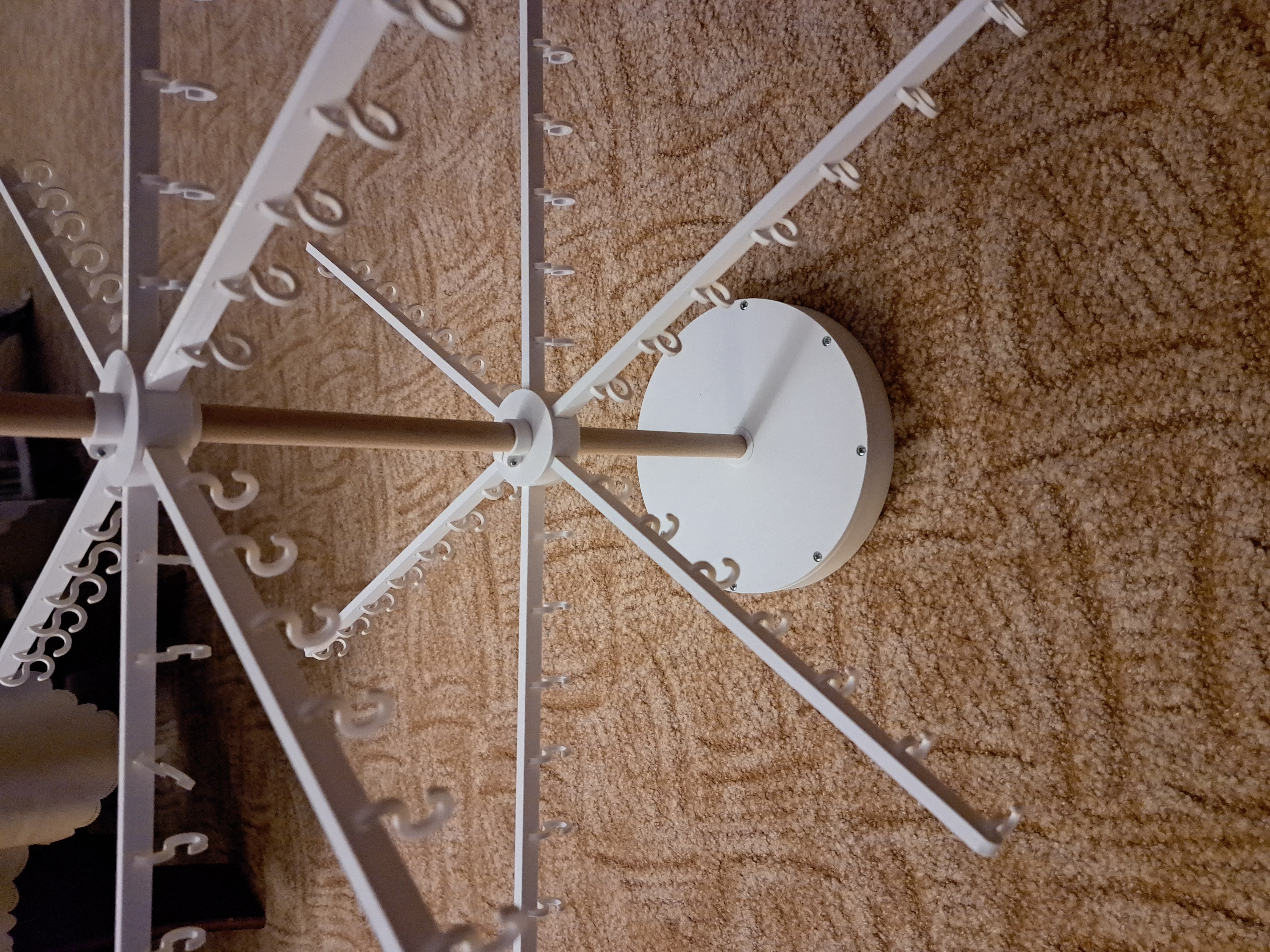

Place the buckle on the guide wooden log, which we place at the height of the center with the arms and tighten with a screw. Place the center for the arms on the log, onto which gradually slide the arms from above. Finally, put on the pad and buckle, which should be secured with a screw so that the center with the arms can rotate freely.

The hooks hang through the holes in the arms. In the case of hanging larger objects, we choose a suitable distance between the hooks. To transport the stand, just remove the hooks, loosen the buckles above the centers and remove the arms.

Accessories

A few more things are needed to complete the assembly of this model, which are listed in the table.

Download

I offer this model for download for a small fee on the website Cults website.

License

This work is licensed under a Cults - Private Use license. This means you are free to:

• Print and use the 3D prints of the 3D model for private use, in unlimited quantity
• Share the images of your 3D prints of the 3D model on communication media such as social networks or websites

You are not allowed to:

• Use the 3D model or 3D prints for any commercial purpose or public sharing
• Modify or adapt the 3D model for public sharing or sale
• Distribute, sell, donate or exchange the digital files of the 3D model
