Marelis Adlatus

About

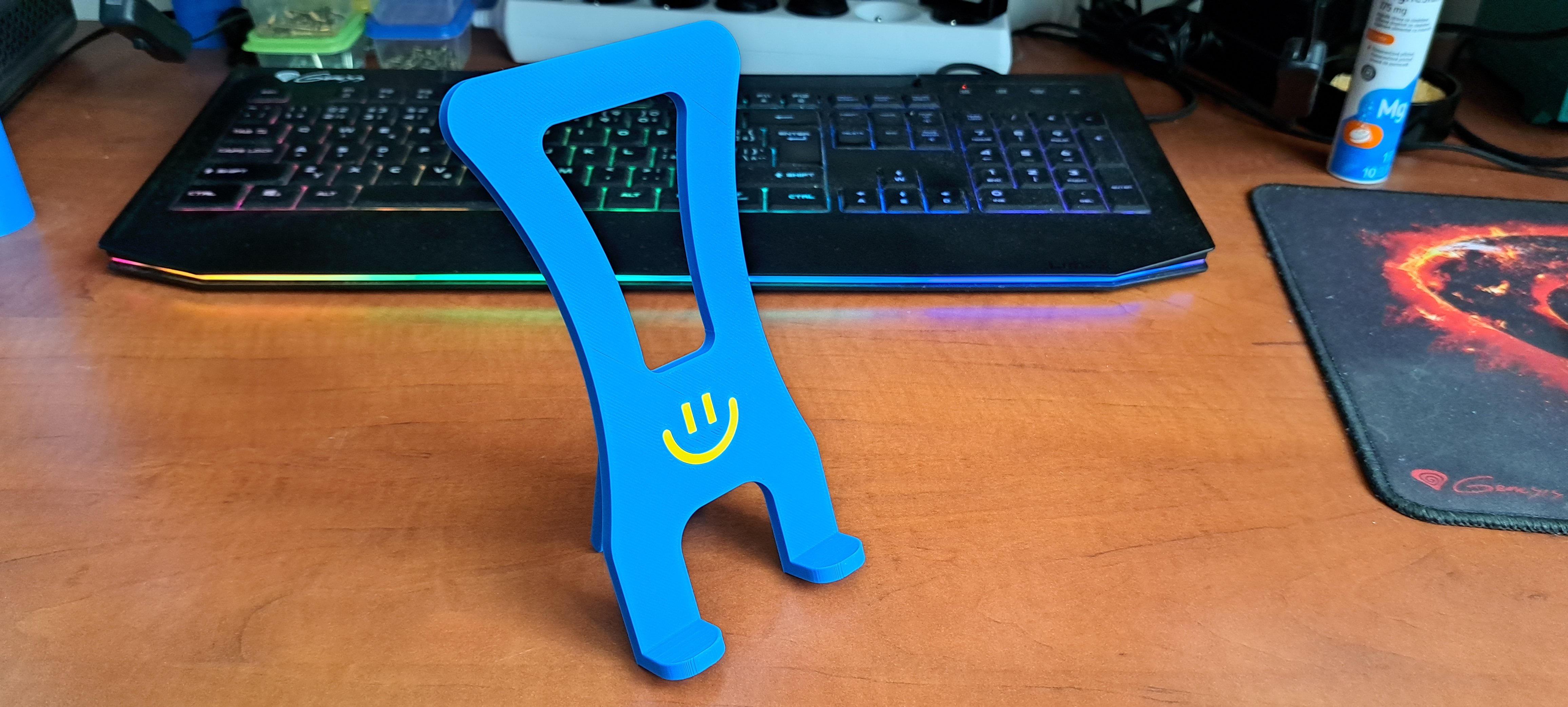

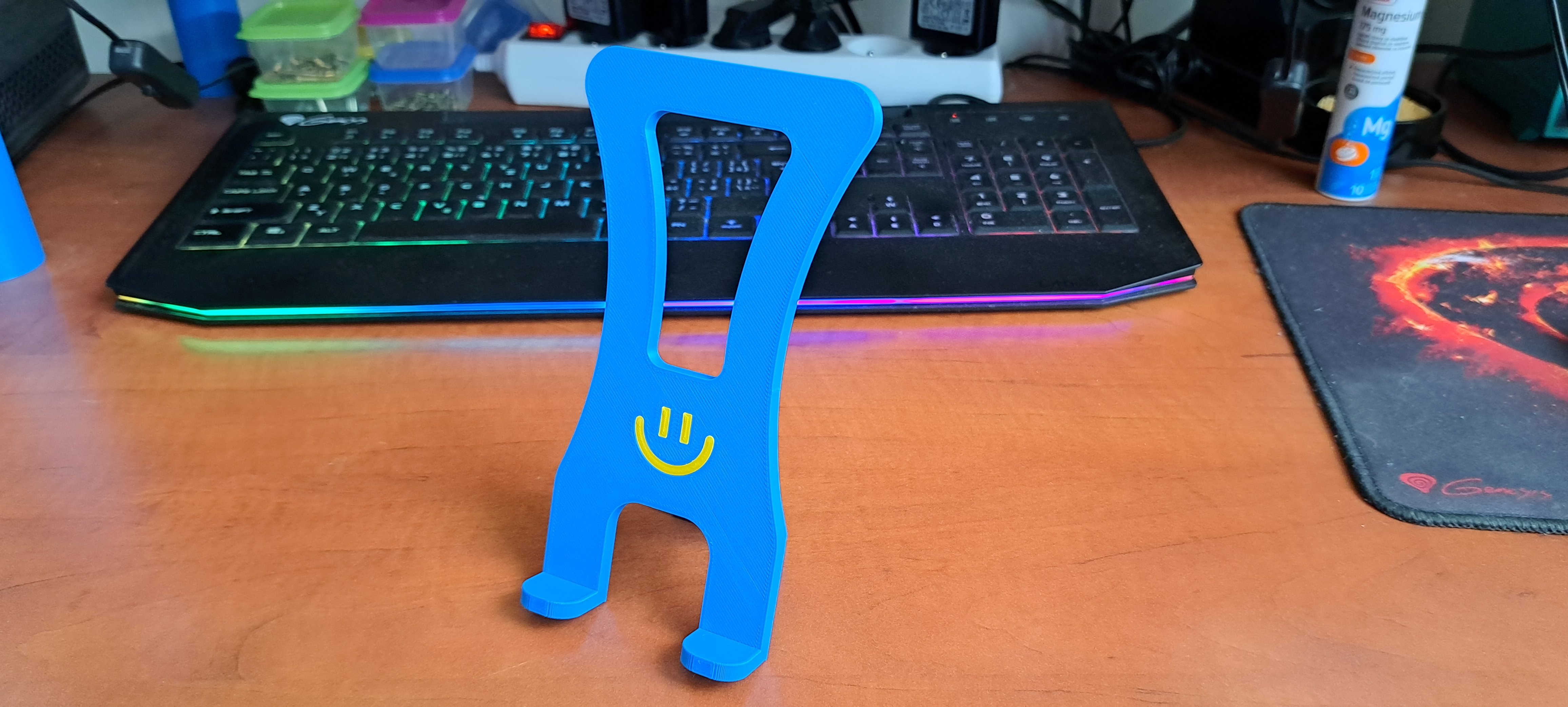

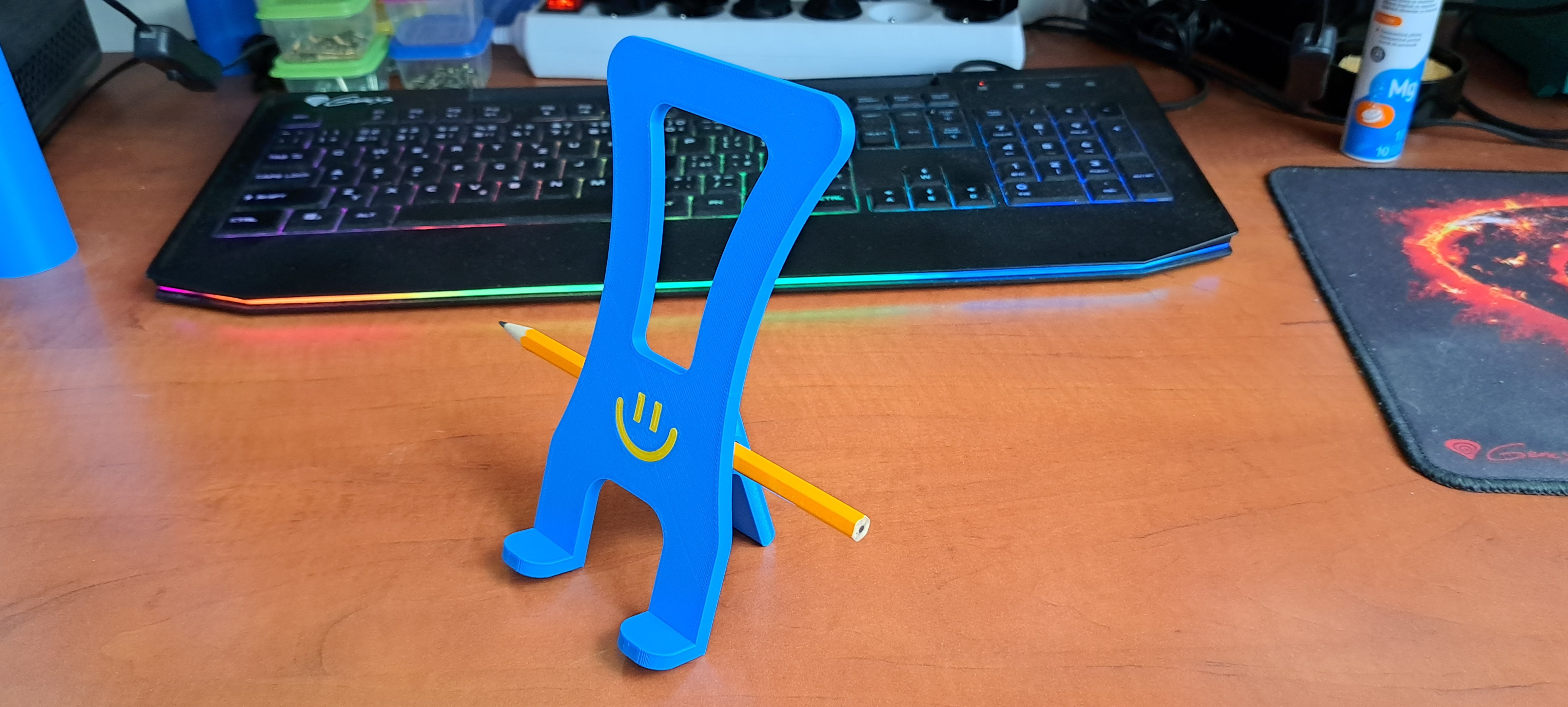

This model has gradually changed. The simple holder has become rounded and there are spaces in it that save material without it. The stand support was first with a simple handle shape and finally it is more cheerful with a smiley face in a different color for better contrast.

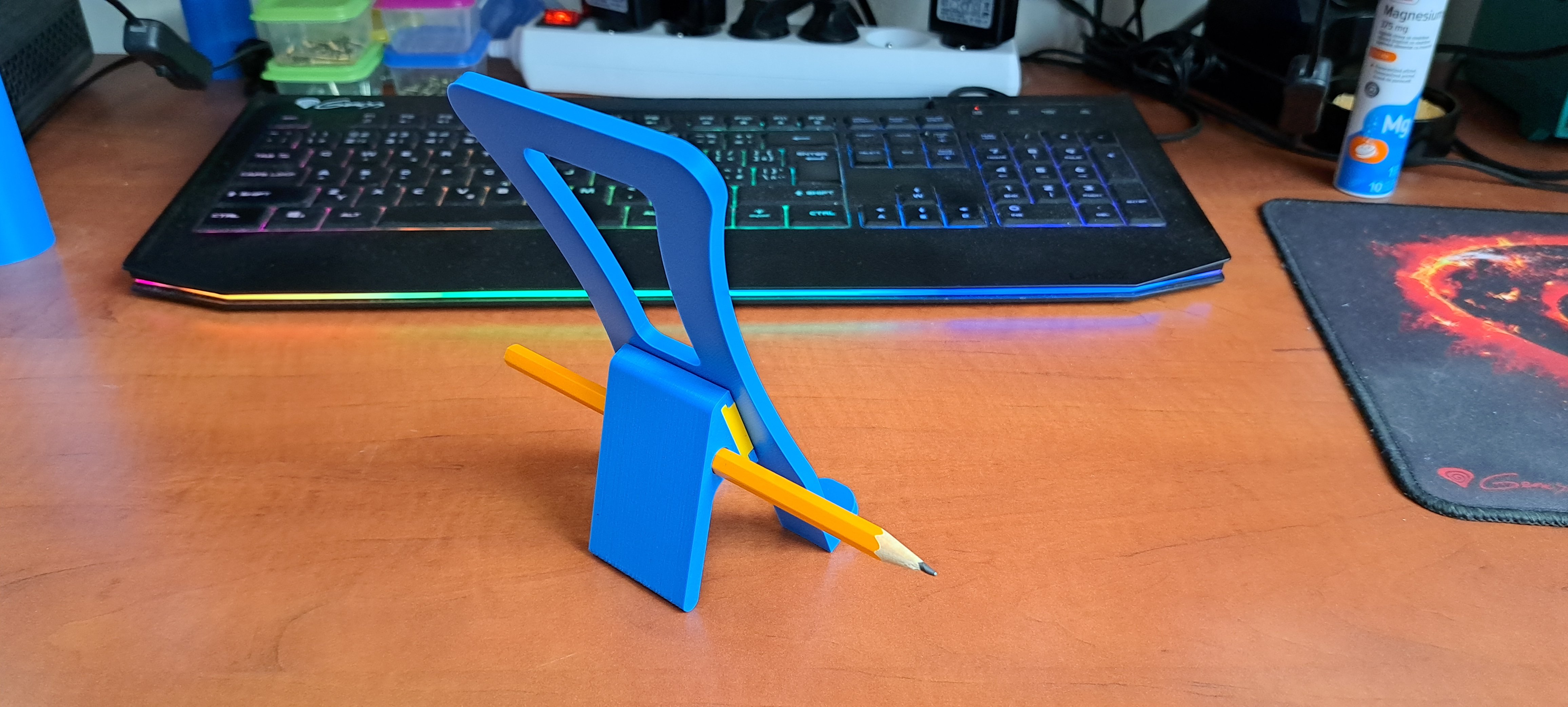

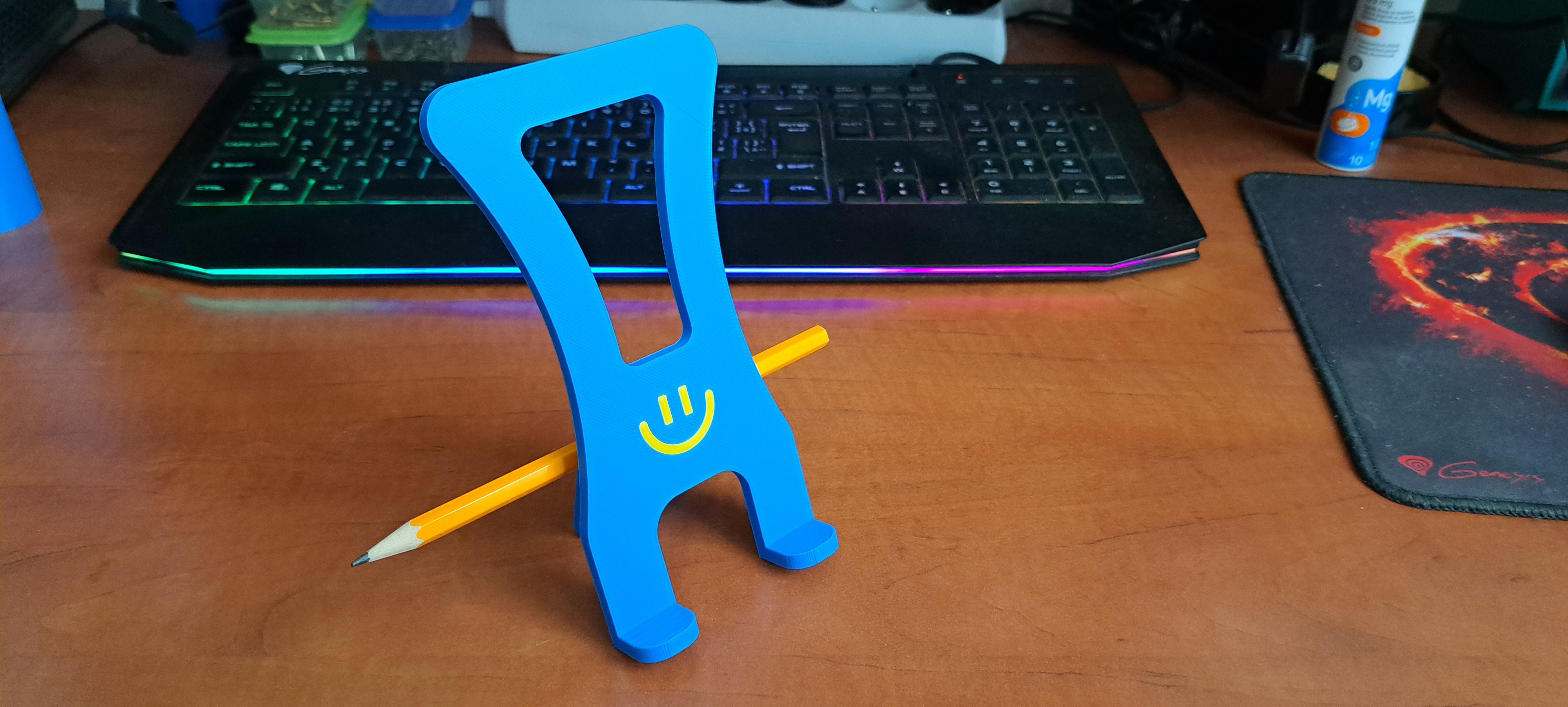

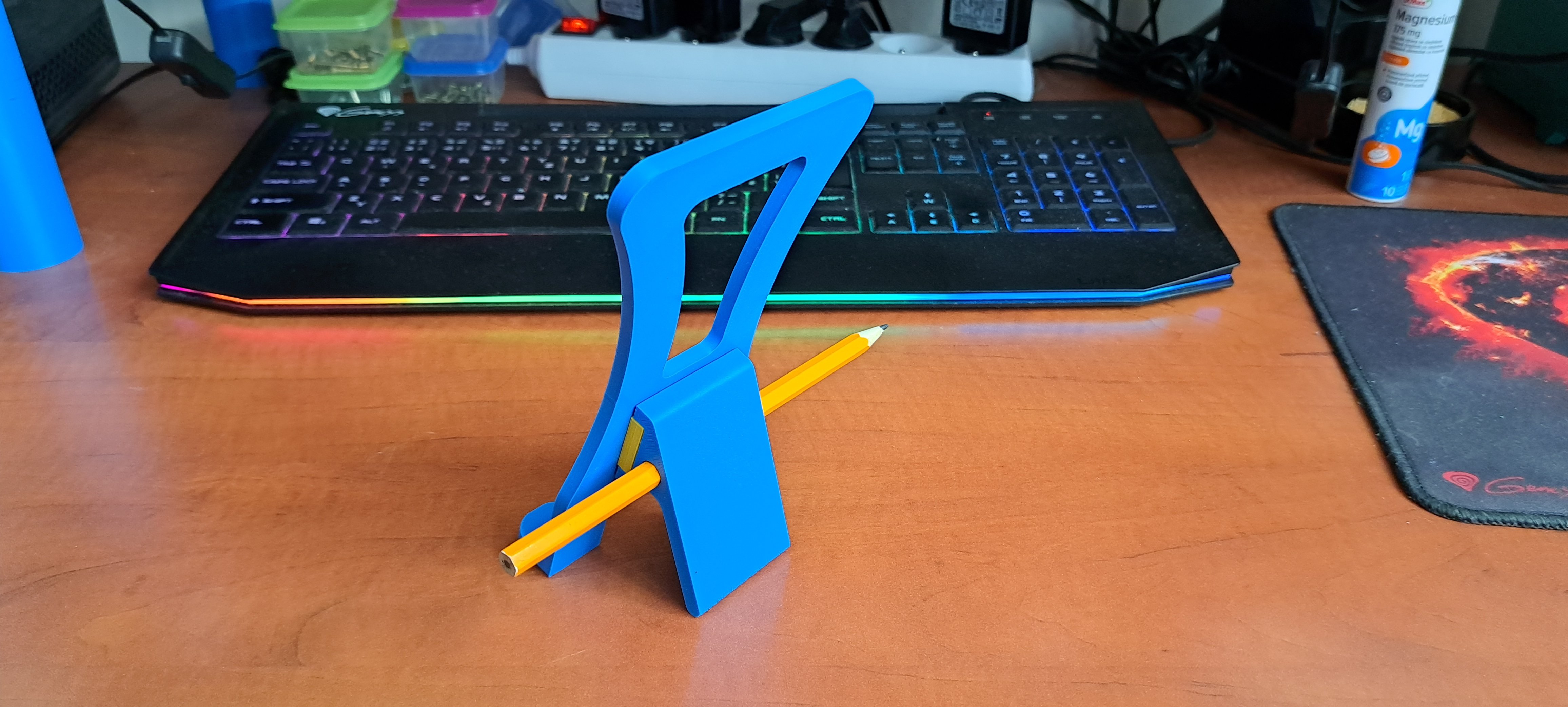

I did not want to use screws to attach the support and that was a challenge for the sliding version without connecting material. And when trying to save material during printing, a through hole was created in the backrest, which can be used as a holder for a pencil or pen.

Phone
by Marelis Adlatus is licensed under Cults - Private Use

Smiley
by Marelis Adlatus is licensed under Cults - Private Use

Stand
by Marelis Adlatus is licensed under Cults - Private Use

Progress

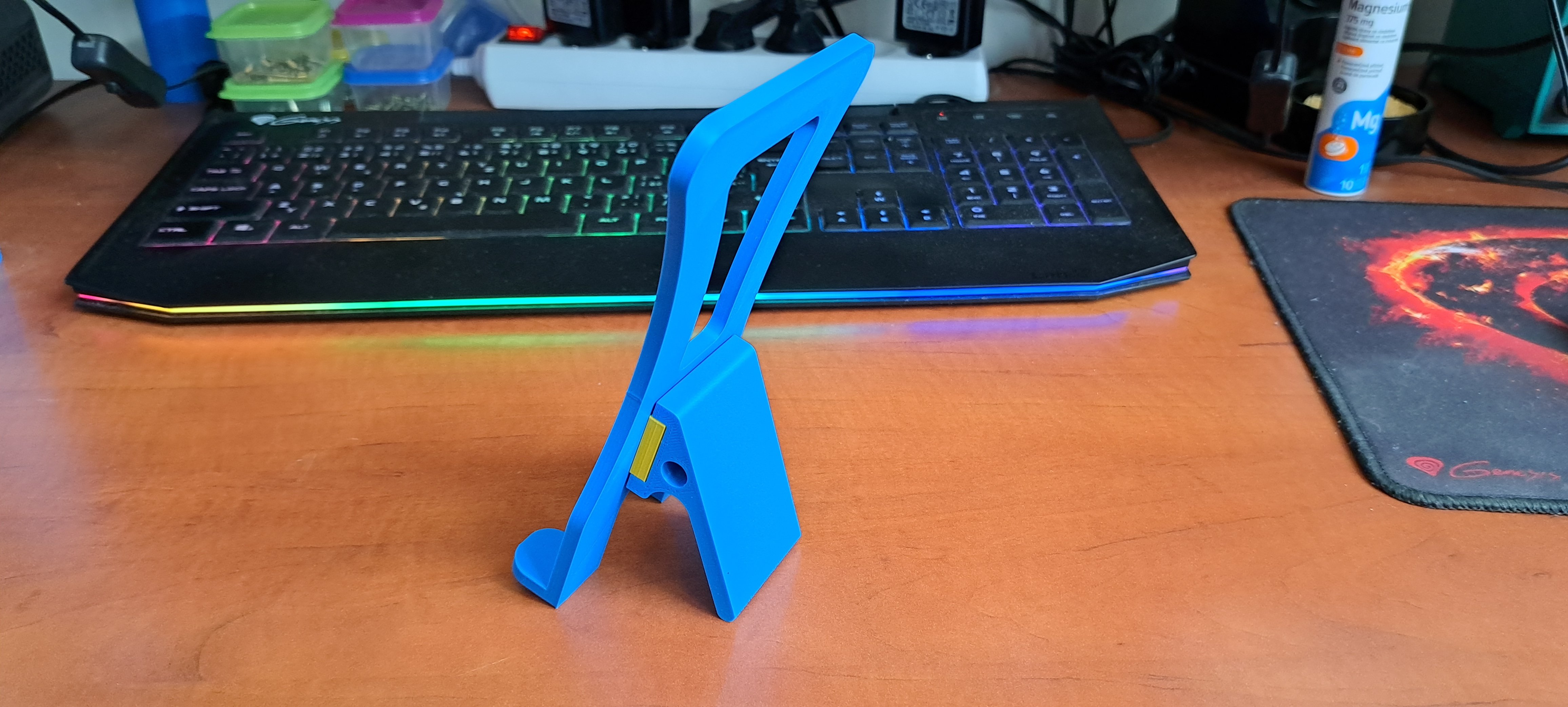

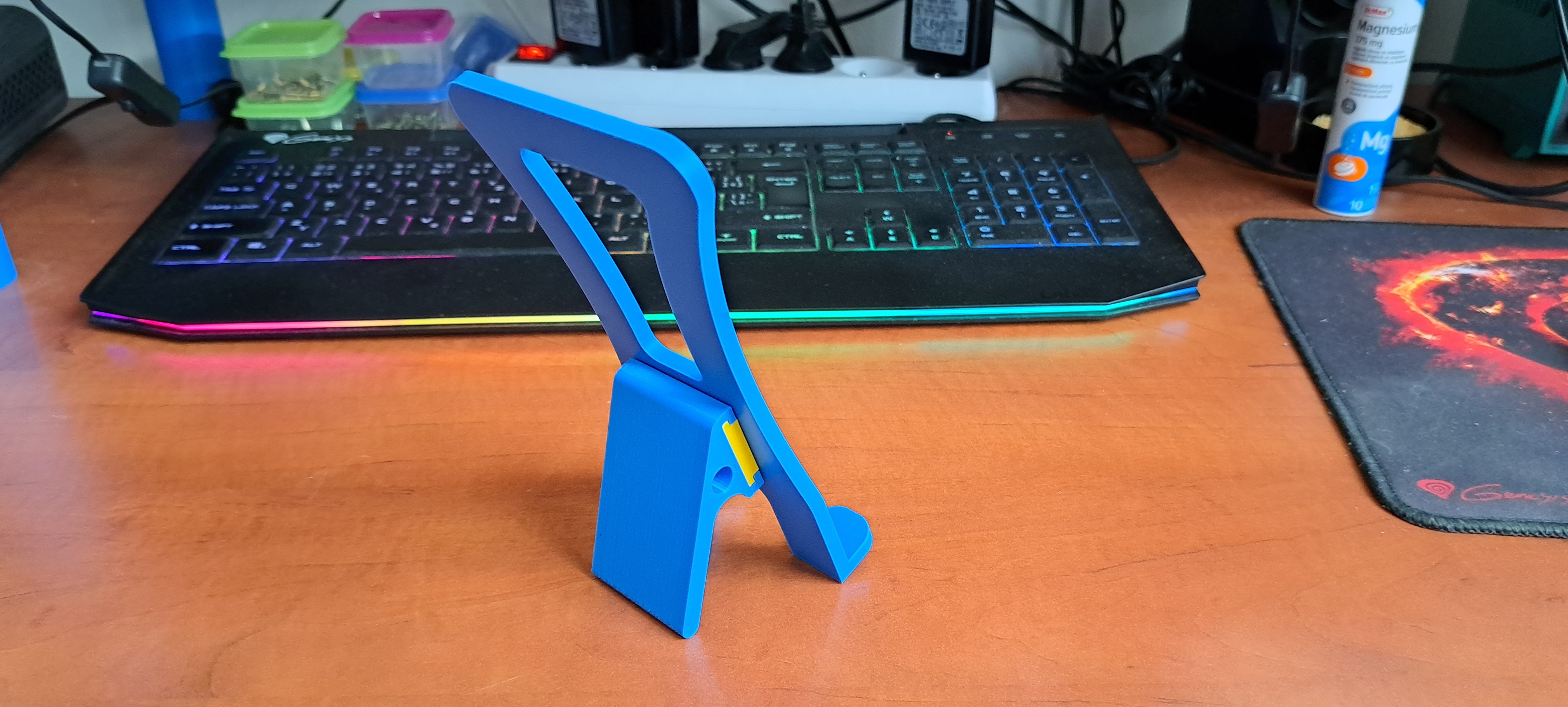

It was difficult to define the clearances where the parts slide into each other. The angle and length of the support, which determines the tilt of the stand with the mobile, were also important for the stability of the stand.

100%

First draft in the 3D editor

Test print of the model

Putting all the parts together

Clarification of the dimensions

Editing the design in the 3D editor

Final print of the model

The possibility of printing with different filaments allows for more color combinations of the smiley and the stand.

This model is not yet related to any other project, software or hardware.

Print

If the individual parts are properly rotated, the print is fine and the supports are minimal.

Material PLA

Quality 0.2 mm

Filling 50 %

Support No

Construction

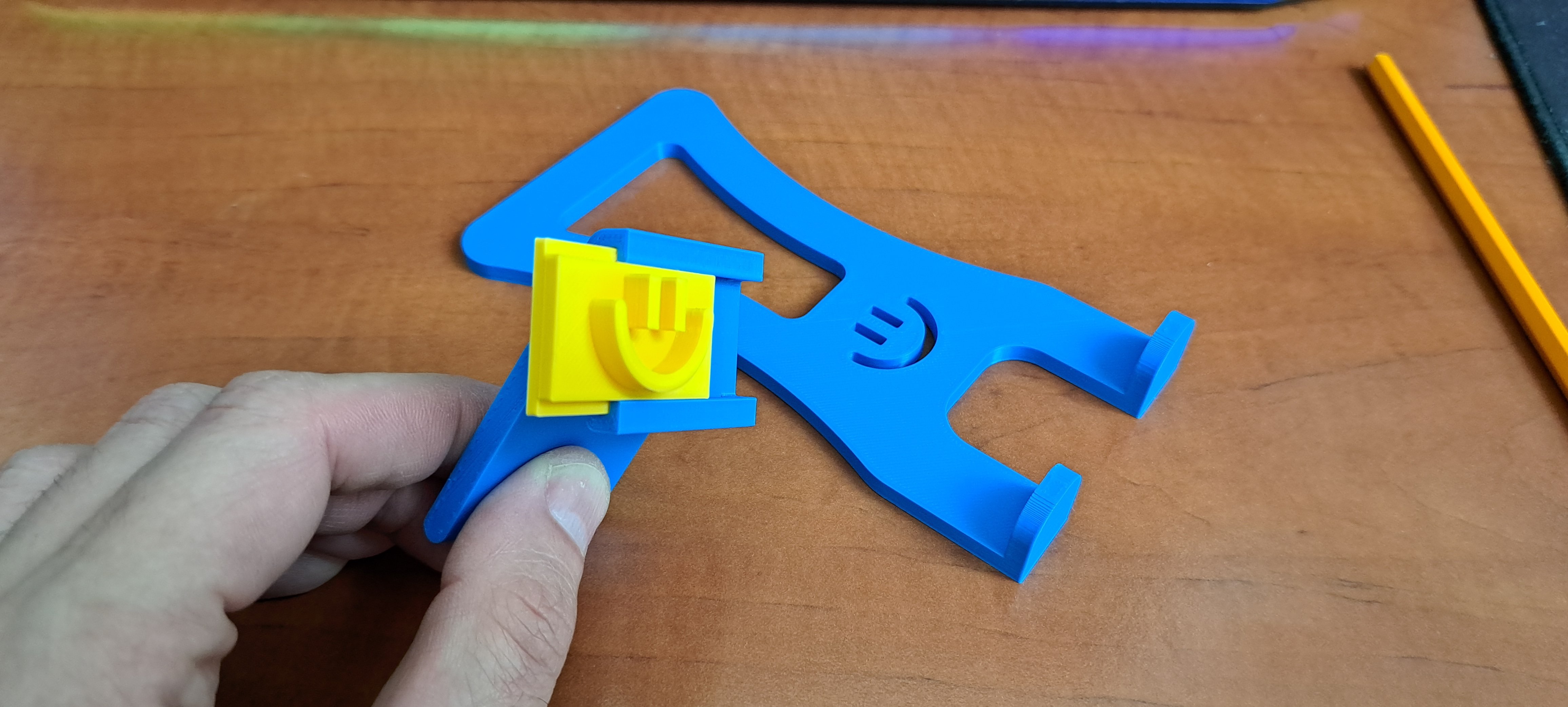

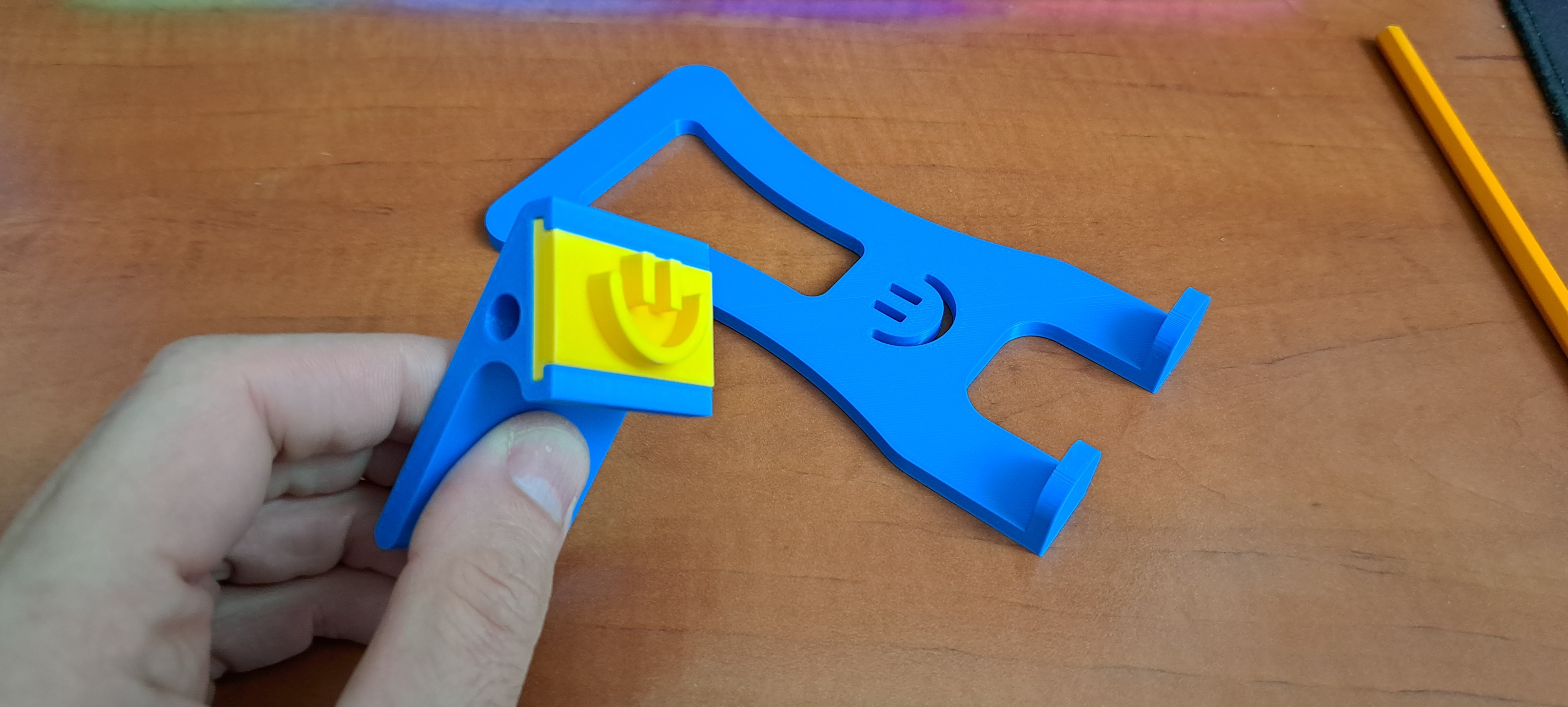

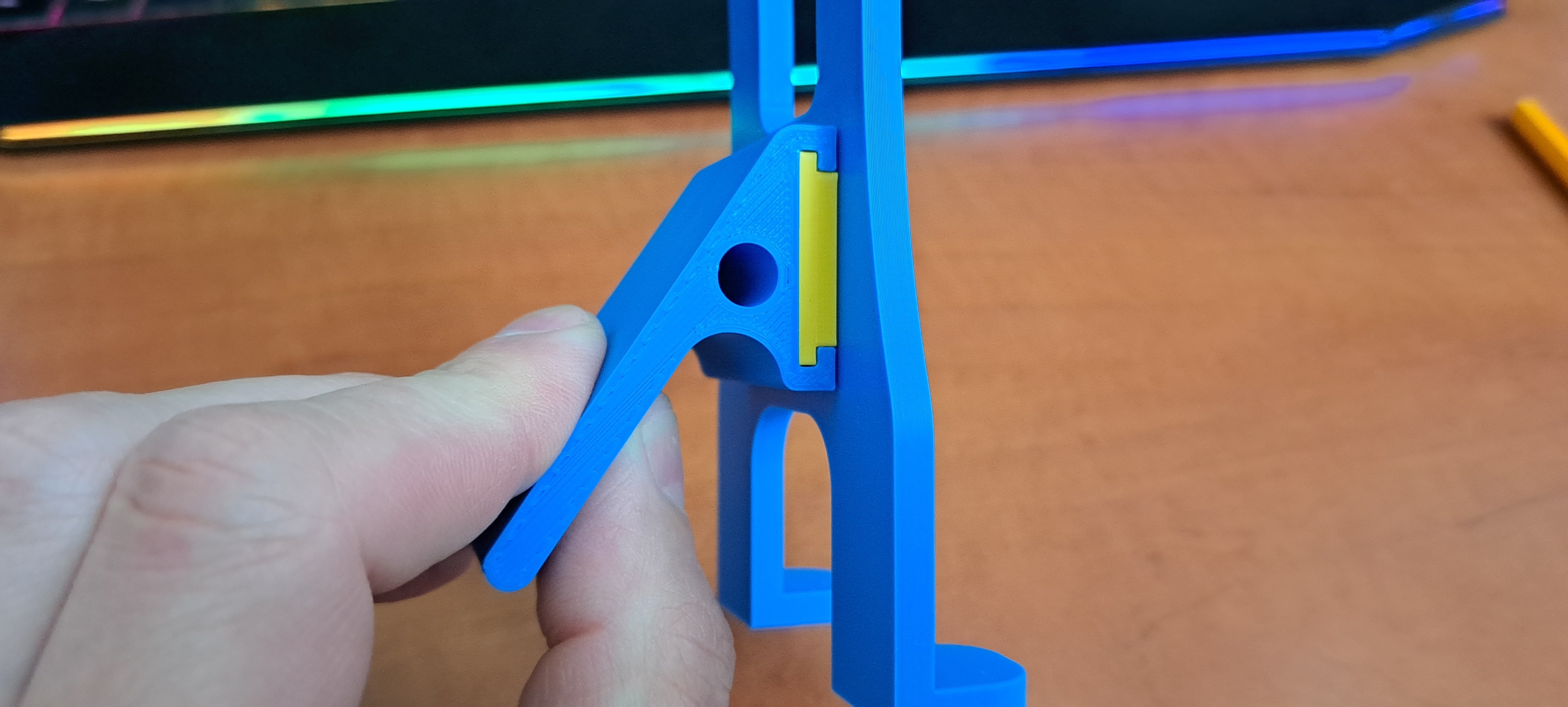

The model is made of several parts and its final form is not difficult to assemble. Anyone can do it with a little skill. The part with the smiley face is inserted into the backrest from the side. Then the backrest is inserted into the stand from the back in the place where the holes with the smiley face outline are.

Accessories

This model does not require any accessories in the form of handles, screws, etc.

Download

I offer this model for download for a small fee on the website Cults website.
