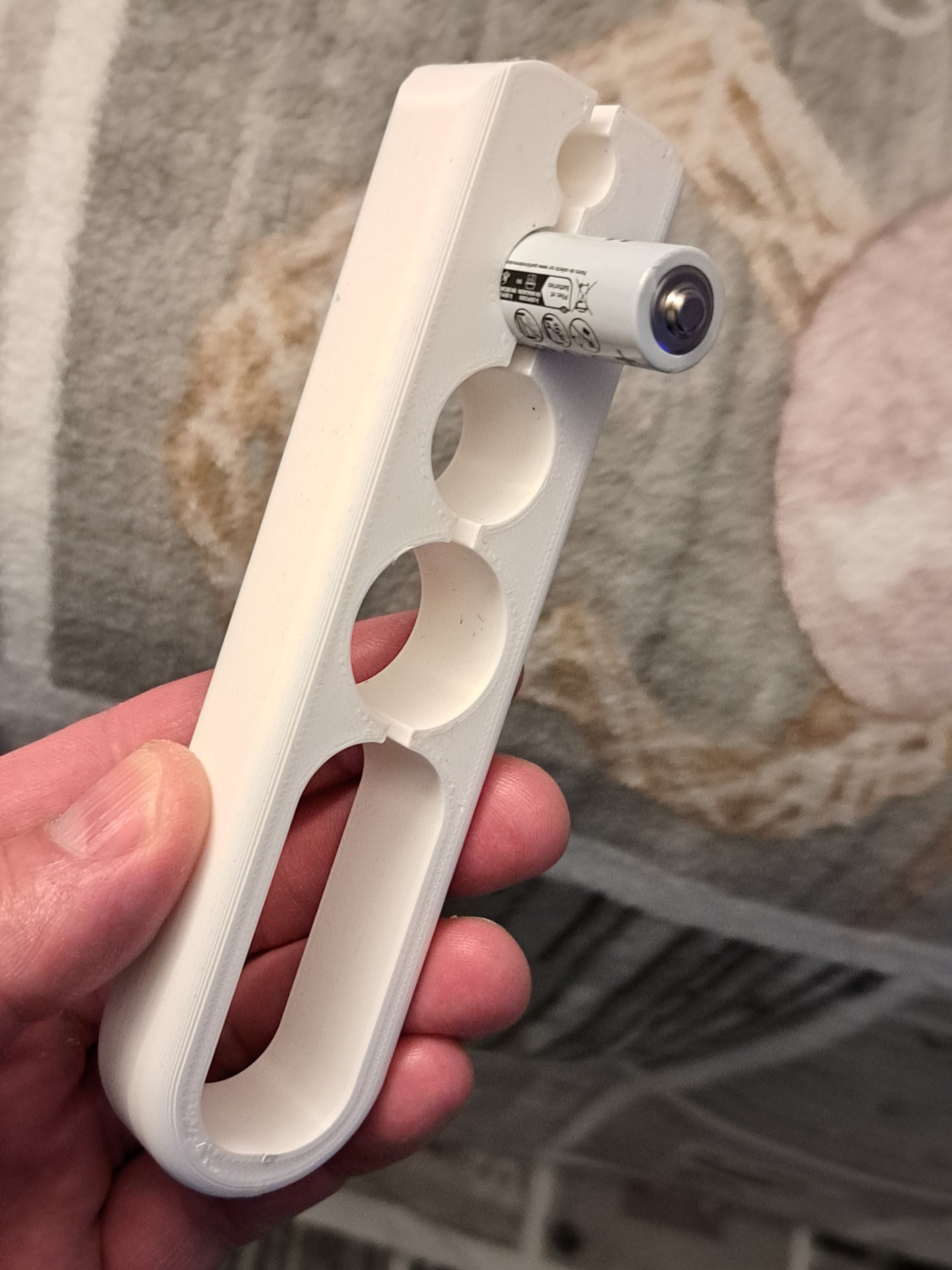

The inspiration for this project was the need for a painter who was straining her hands while holding a Christmas bulb while painting. The pliers are also suitable for holding other cylindrical objects, such as batteries, light bulbs, etc.

Pliers for round objects
by Marelis Adlatus is licensed under CC BY-SA 4.0

I offer this model for free download on this page below or on the Cults website. The original project from the RS DesignSpark Mechanical editor is also available for download on this page.

Progress

For such a small model, the procedure is quite fast.

100%

First draft in the 3D editor

Test print of the model

Clarification of the dimensions

Editing the design in the 3D editor

Final print of the model

It was interesting to use the flexibility of the material, this way you can create many shapes of pliers for gripping objects. The disadvantage is the heat resistance of plastic for printing, it deforms at higher temperatures.

This model is not yet related to any other project, software or hardware.

Print

With this model, printing is hassle-free.

Material PLA

Quality 0.2 mm

Filling 30 %

Support Yes

Construction

This model does not need any assembly or special handling.

Accessories

This model does not require any accessories in the form of handles, screws, etc.

Download

Here you can download a stl file for printing or editing. And also the original project for the RS DesignSpark Mechanical application with the extension rsdoc.

The rsdoc format is for RS DesignSpark Mechanical version 5. Newer versions of the editor that use the rsdocx format can open this older format.
