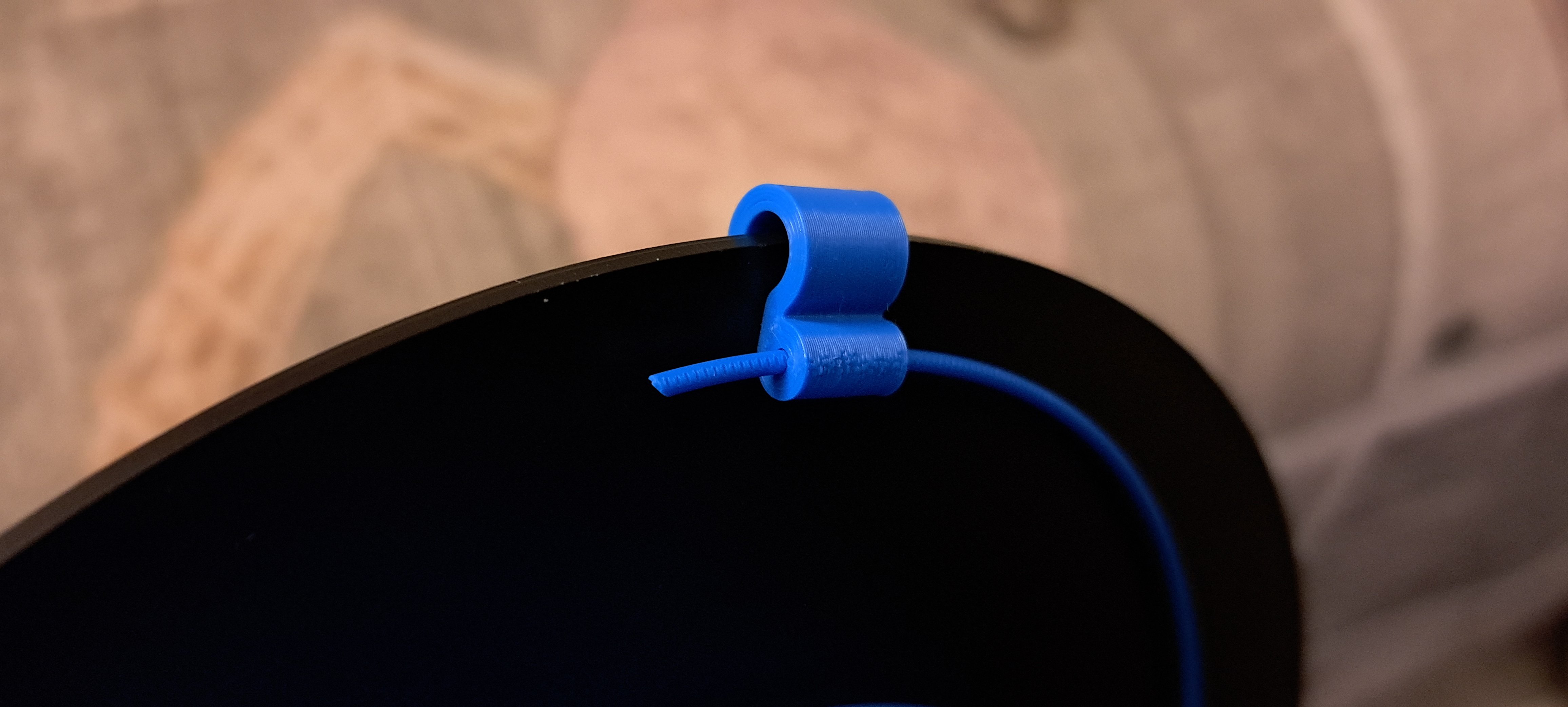

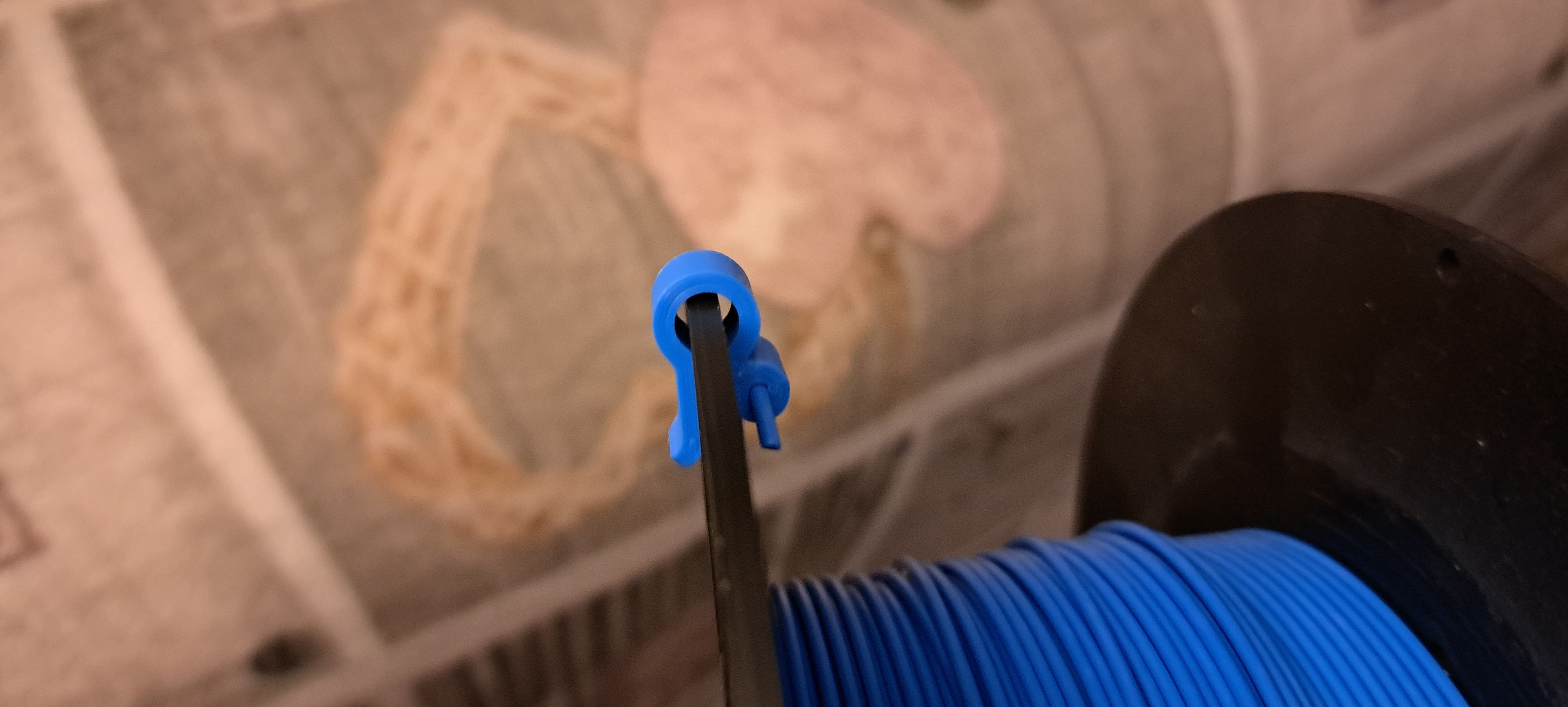

This model was my first attempt to create something in the RS DesignSpark Mechanical 3D editor. I use the 3D prints of this model to attach the end of the filament to the spool, which I then hide in the original packaging.

Filament clip 1.75 mm
by Marelis Adlatus is licensed under CC BY-SA 4.0

I offer this model for free download on this page below or on the Cults website. The original project from the RS DesignSpark Mechanical editor is also available for download on this page.

Progress

For such a small model, the procedure is quite fast.

100%

Measure the size of the side of the coil

First draft in the 3D editor

Test print of the model

Clarification of the dimensions

Editing the design in the 3D editor

Final print of the model

It was interesting to find out what the differences are in estimating the dimensionality of objects between the 3D editor and testing with a real object after printing. In the 3D editor, the object looks larger than the real printed object.

This model is not yet related to any other project, software or hardware.

Print

With such a small object, printing is without problems.

Material PLA

Quality 0.2 mm

Filling 20 %

Support No

Construction

The clip is one small part that does not need any assembly or special handling.

Accessories

This model does not require any accessories in the form of handles, screws, etc.

Download

Here you can download the stl file for printing or editing. Or the original project for the RS DesignSpark Mechanical application with the extension rsdoc.

The rsdoc format is for RS DesignSpark Mechanical version 5. Newer versions of the editor that use the rsdocx format can open this older format.
